Demo of the Pingable Enevlope Generator run at audio rates

PEG Parameter Controller: 16 LED push buttons give access to all the system parameters of both channels on the PEG:

• Sync vs. Async modes: View current state and change between modes
• Gate or trigger for EOF/EOR jacks
• End-of-Fall or direct Tap Tempo Clock output for EOF jack
• End-or-Rise or Half-Rise output for EOR jack
• Skew Limiting (max 6ms rise or fall, no matter what CV/knob setting)
• Enable/disable ASR envelopes when gated with the ASync jack
• Force PEG to stop when external ping clock stops

• System Mode allows re-configuring jacks and parameters:
  • Select trigger or gate output for EOR/EOF
  • Assign EOR or Half-rise to EOR jack
  • Assign Tap Tempo Clock (pre-divider/multiplier) to EOF jack
  • Enable Skew Limiting to limit maximum rise or fall time to 6.5ms
  • Require a continuous ping clock
• Fixed glitching when rapidly changing parameters

Download the PEG User Manual version 4
Download PEG Firmware Version 4
How to Upgrade Your firmware
Or email us to arrange for upgrade chips to be mailed to you

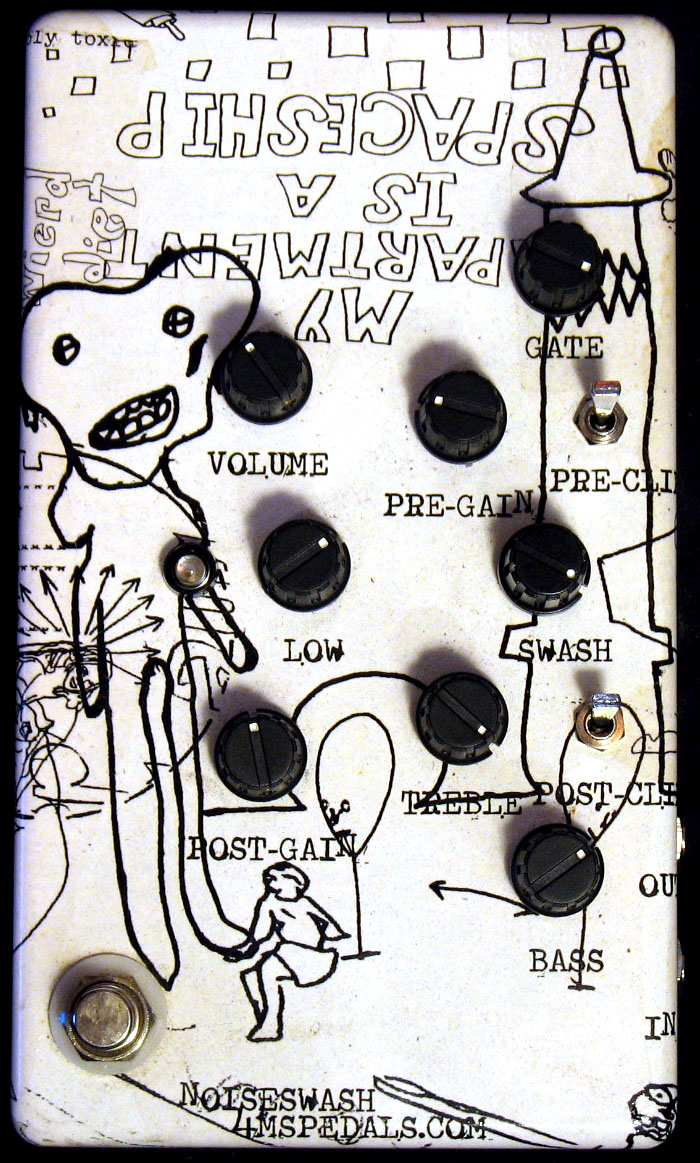

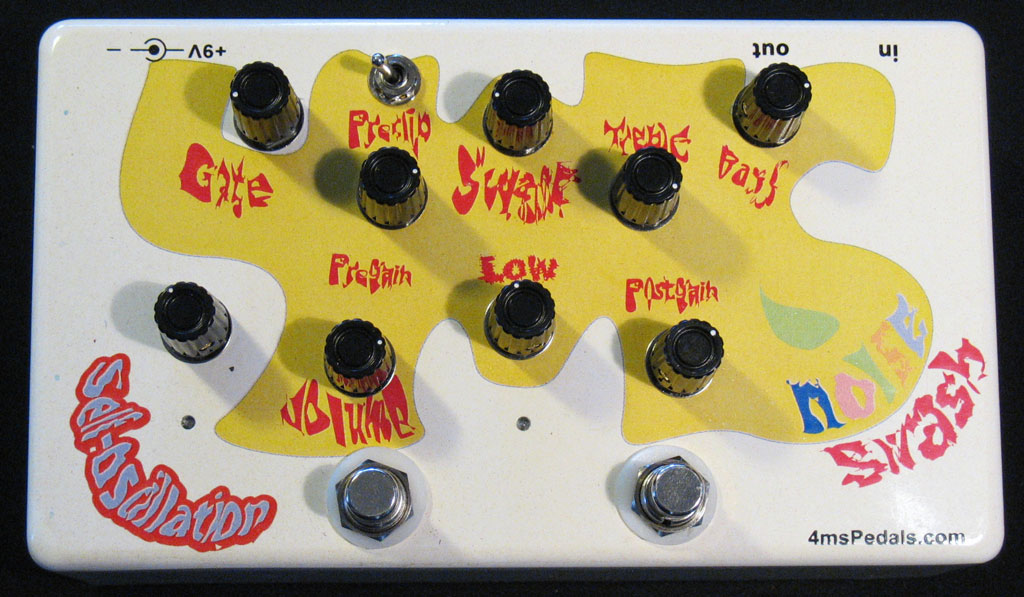

The kit for the Eurorack version of the Noise Swash is now available!

See the Euro Swash here: Eurorack Swash
